This PoE video doorbell features high 2K+ resolution and smart person detection.
Suitable for those wanting to connect to a Reolink NVR.
2K+ Incredible Clarity & Wide View
More than twice the resolution of 1080p. The 5MP camera will provide you with more detail. With a 180° field of view see more of your surroundings. A 15° wedge is included for you to adjust its angle.
PoE - Reliable Connection & Easy Installation
This PoE doorbell uses only one wire to get stable network and non-stop power at the same time. You can also connect the doorbell to your pre-existing doorbell wiring.
Person Detection & Motion Zone
Choose to be alerted when only people approach, ignore cars and other trivial movements. Create motion zones to black out areas prone to unnecessary alarms.
2-Way Talk & Pre-set Voice Messages
Chat to your visitors or choose a pre-set voice message
Record Before "Action"
The doorbell camera will start recording before actual detections happen. 6-second colour video footage prior to the alert may help you a lot: know the possible causes or increase the likelihood of criminal identification.

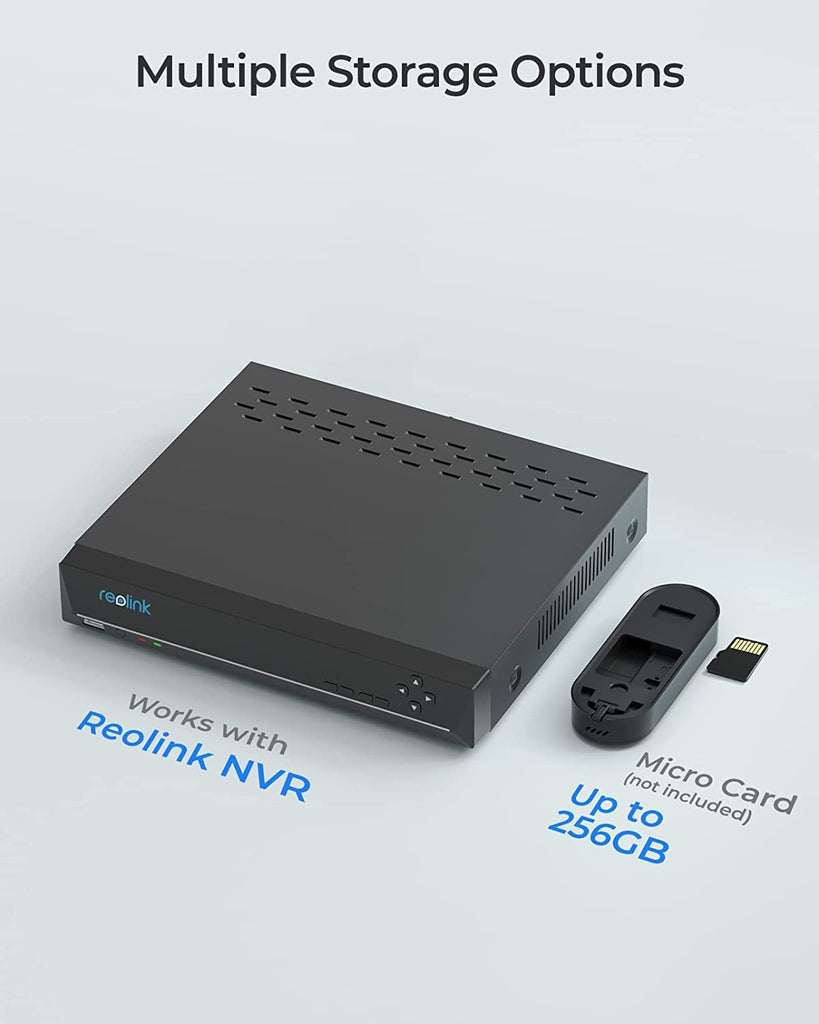

Multiple Video Storage Options
Record and playback video, for free, by recording locally to MicroSD or connect to your Reolink NVR.

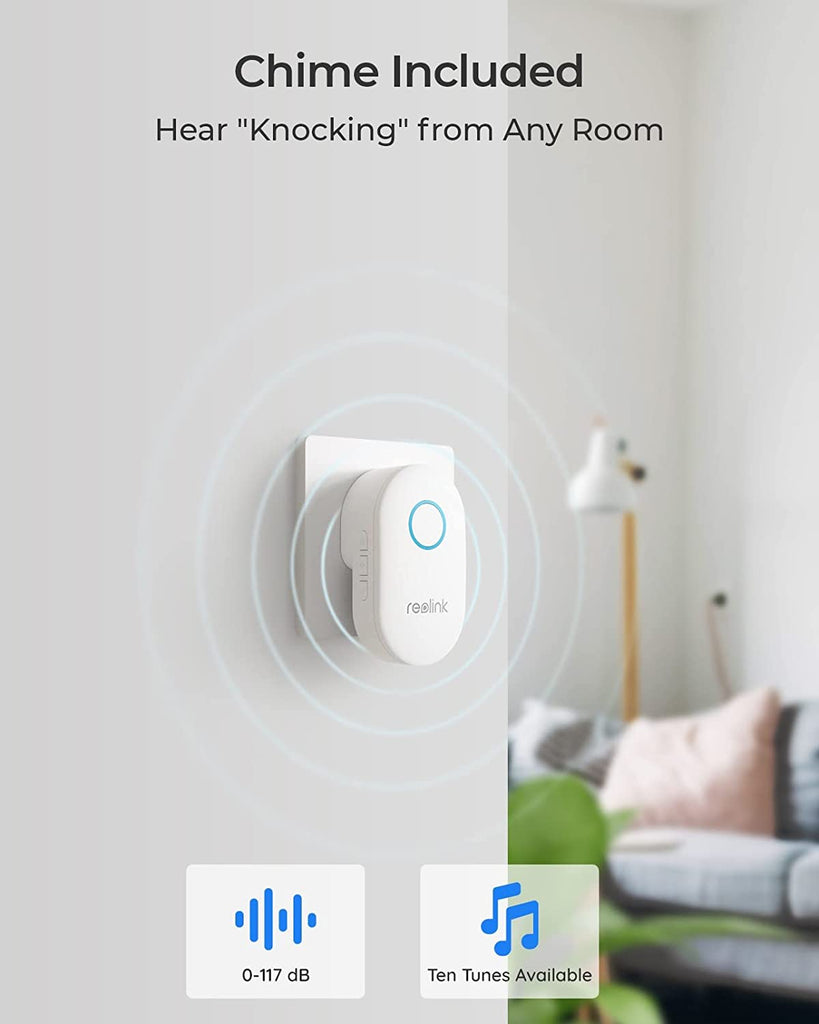

Chime Included
Plug into a wall socket to hear your doorbell in any room.
Specifications
- Image Sensor: 1/2.7" CMOS Sensor
- Video Resolution: 2560 x 1920 (5.0 Megapixels) at 20 frames/sec (default)
- Lens: f=2.26mm, F=2.0 with IR cut
- Video Format: H.264
- Field of View: Horizontal: 134° Vertical: 97° Diagonal 180°
- Audio recording: Two-way audio, noise reduction, echo suppression
- Pre-Motion Recording: Supported
- Quick Replies: Supported
- Size: 133mm(H)x48mm(W)x23mm(T)
- Power: Hardwired 12-24VAC 50/60Hz DC 24V or PoE IEEE 802.3af, 48V active
- Ethernet: One 10M/100Mbps RJ45
- Storage: Micro SD card slot (Max. 256GB) or Reolink NVR
- Audio: Built-in 2 microphones & speaker
- Frame Rate: Mainstream: 2fps - 20fps (default: 20fps) Substream: 4fps - 15fps (default: 10fps)
- Code Rate: Mainstream: 1024Kbps - 6144Kbps (default: 4096Kbps), Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Browsers Supported: IE, Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Person detection
- Record Mode: Motion Record/Schedule Record (Default: Motion Record), 24/7
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Work with: Google Assistant
- WIFI: Wireless Standard, IEEE 802.11a/b/g/n
- Operating Frequency: 2.4GHz/5GHz
- Wireless Security: WPA-PSK/WPA2-PSK
How To Install?
Click here for instructions
