24/7 Continuous Recording
If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice for Reolink Cameras.
- Pre-installed 2TB HDD for 24/7 recording and monitoring.
- Support all cameras recording at the same time (up to 8 cameras).
Works with All Reolink IP Cameras
This 8-channel PoE NVR works perfectly with all Reolink IP cameras for 24/7 recording, motion detection, live views, playback and more features.
PoE - Easy Setup & Real Plug and Play
A real plug and play network video recorder! This RLN8-410 NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts.

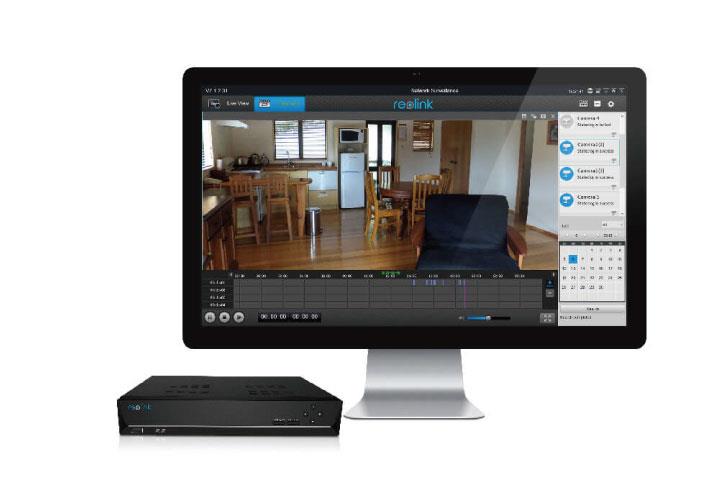

Local and Remote Access & Control
For local access and control: Connect the system to a monitor or an HD TV.
For remote access and control: Use free Reolink App on a mobile device, Reolink Client on a computer or a web browser (IE).
More Features
Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system. You can play back any recorded video, back up local data, and do more
Specifications
IP Video Input: PoE IP Camera x 8
Audio Input: Cameras with Built-in Mic
Video/Audio Output:
HDMI Output: 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
VGA Output: 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Audio output: 1CH RCA
Live View/Playback Resolution:3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p
Video Format: H.264, H.265
Synchronous Playback: Up to 4 Channels
HDD: SATA Devices 1 x 2TB SATA HDD
Maximum Capacity: 12TB (Maximum 6TB HDD/Port)
External HDD: 1 x eSATA
USB Interface: 2 x USB 2.0

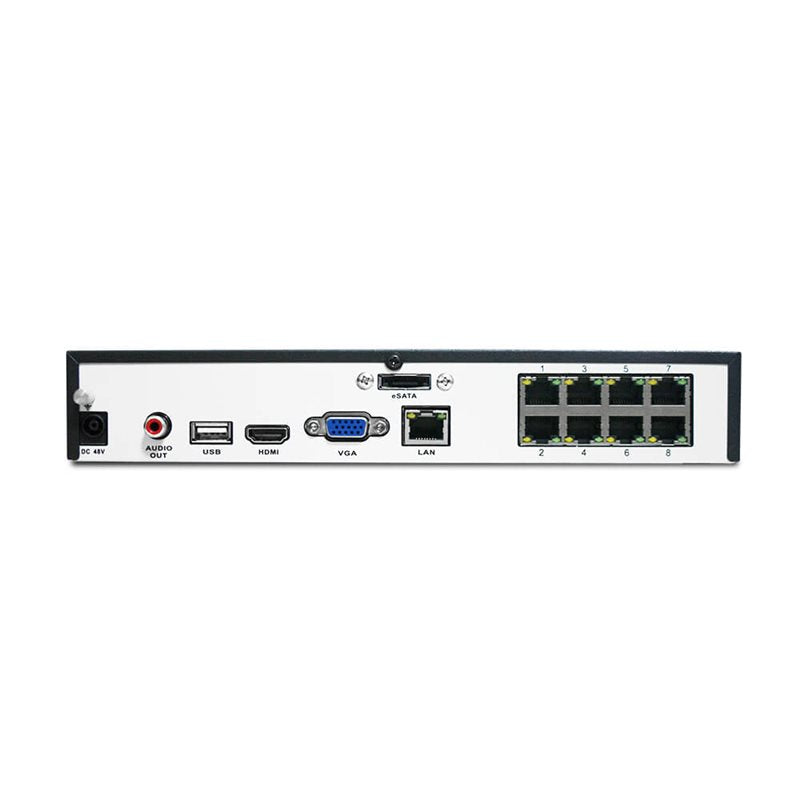

Network Interface: RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN
PoE: 8 Independent 100 Mbps PoE Network Interfaces
Max. Power Consumption: 25W per port
Supported Standard: IEEE 802.3at
Network Protocol: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported: IE, Firefox, Chrome
OS Supported: PC: Windows, Mac OS; SmartPhone: iOS, Android
Max. User Access: 20 Users
Power Supply: DC 48V/2A
Power Consumption: <10W (Without HDD & PoE)
Working Temperature: 10~+55C (14°F~131°F); Humidity: 10%~90%
Dimensions (mm): 260(W) x 41(H) x 230(D)
Weight (w/o HDD): 1.2 kg
