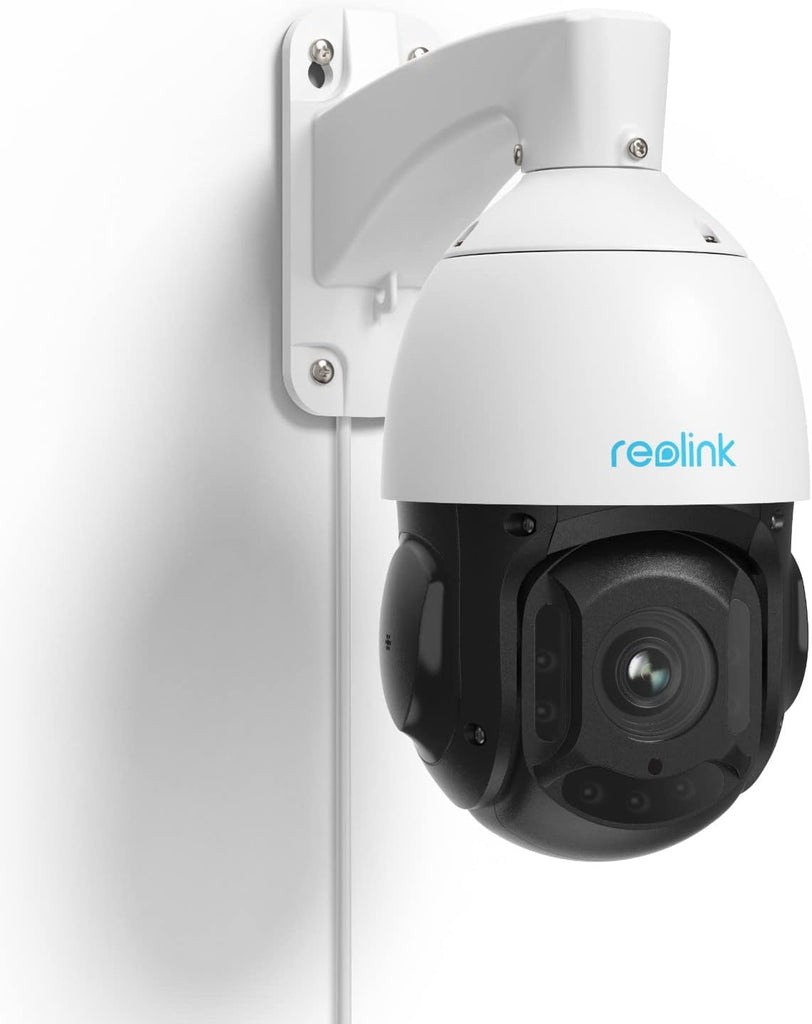

16 x Optical Zoom With Pan & Tilt
With 360° pan, 90° tilt, 16 x optical zoom, a spotlight and auto tracking, this camera is great for covering multiple angles and distances.
Can be used with a Reolink NVR or via a PoE switch.

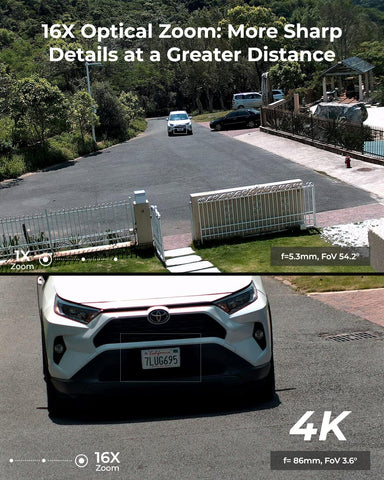

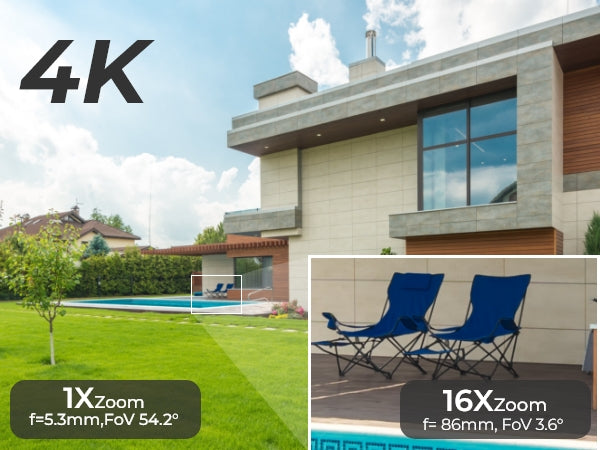

16 x Optical Zoom
With a motorized varifocal lens, RLC-823A allows you to view from a wide angle. Its 16 x optical zoom enables you to zoom in for astonishing details or zoom out for maximum coverage.
Patrol Mode & Auto Tracking:
Choose Patrol Mode (up to 64 pre-set points) or Auto Tracking to take full advantage of this Pan Tilt Zoom camera.
Smart Person/Vehicle Detection
RLC-823A is smart enough to distinguish person and vehicle from other objects. Offering accurate detections and greatly reducing the false alarms on trivial objects' movements.
More Security with Dual Warning
When RLC-823A detects someone suspicious, its spotlights and siren will be triggered or manually activated to warn off the unwanted guest, eliminating potential threats.
Two-Way Audio: Easier Communication
With built-in mic & speaker, you are free to listen and talk back to whoever the camera catches in real time. Remote communication has never been so easy. NB If using a NVR the NVR will not have an in-built mic.

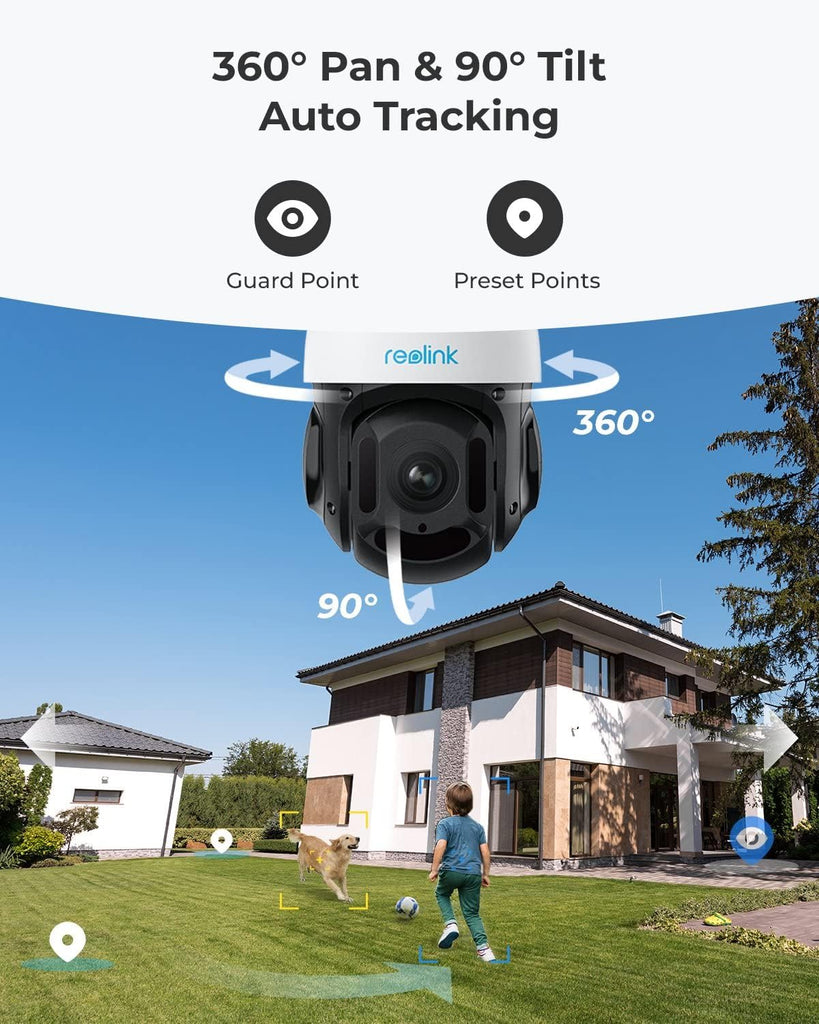

Up & Down, Left & Right, Pinpoint & Track
With 360° pan & 90° tilt, RLC-823A can monitor a surprisingly large area with a single security camera. It can also keep track of the moving person/vehicle automatically. Never miss any important moment.
Ultra High Definition (8MP)
RLC-823A shows you a much clearer world. Be free to enjoy the flawless pictures and videos. You can easily view the hard-to-see details captured by the camera.
Ultra Clarity at Night
RLC-823A with infrared LEDs provides up to 80m IR night vision.
Amazing Time-Lapse Videos
Long-term events like, construction, sun rising and flowers blooming are hard yet fun to observe. This PTZ camera with time lapse makes it quicker and easier to appreciate the amazing process of such events in minutes.
PoE - Faster, Easier & Lower-Cost Installation
Thanks to Power over Ethernet (PoE) technology, this PTZ IP camera can transmit videos and be charged simultaneously via only one network cable. You can install this camera quickly and nicely.

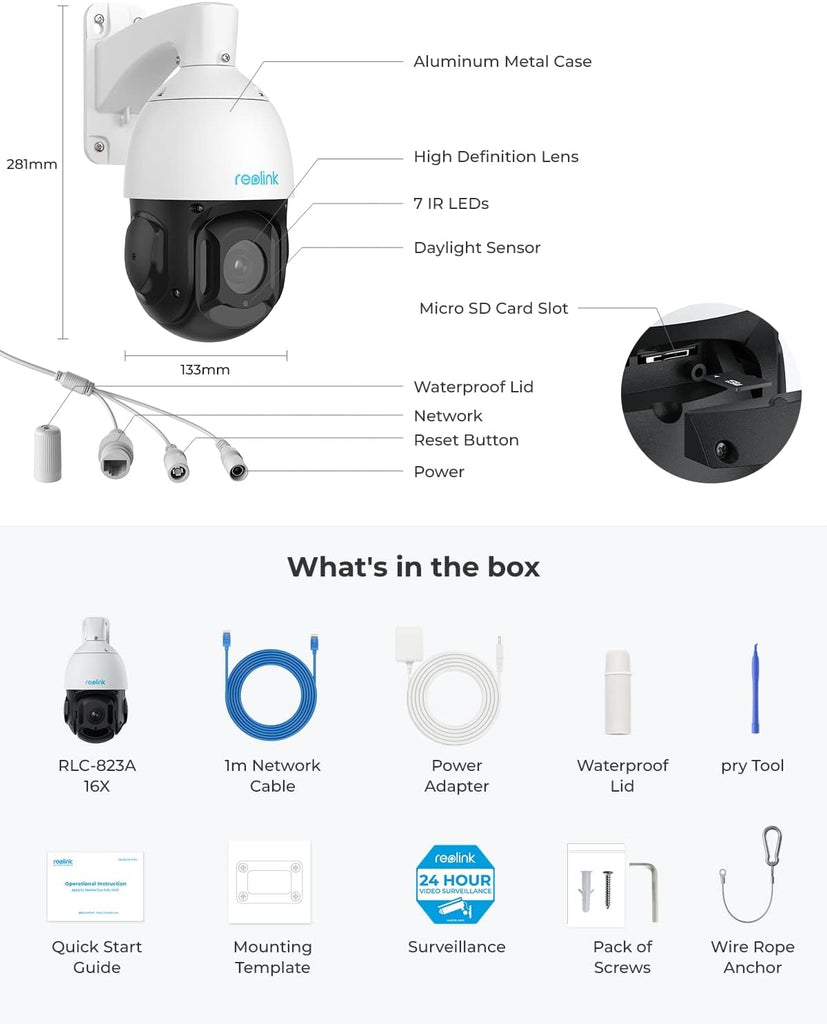

Specifications
- Image Sensor: 1/2.8"CMOS Sensor
- Video Resolution: Up to: 3840 x 2160 (8.0 megapixels) at 25 frames/sec
- Lens: f=5.3-86mm zoom module
- Video Format: H.265
- Optical Zoom: 16x
- Field of View - Horizontal: 54.2°-3.6° Vertical: 41.7°-21°
- IR-cut filter with auto-switching
- Infrared Night Vision: Up to 80 meters (LED: 7pcs/28mil/850nm)
- 2 way Audio
- Power: IEEE 802.3at, 48V active, DC Power DC 12.0V⎓2A, <12W
- Reset button
- Ethernet: One 10M/100Mbps RJ45
- Storage: Micro SD card slot (Max. 256GB)
- Audio: Built-in microphone & Speaker
- Pan & Tilt Range - Pan: 360°, Tilt: 0°~90°
- Pan Speed: 1.4°-281°/s (Speed can be set)
- Tilt Speed: 1.4°-56°/s (Speed can be set)
- Pre-set: 64
- Auto Tracking: Yes
- Frame Rate: Mainstream: 2fps - 25fps Substream: 4fps - 15fps
- Code Rate: Mainstream: 4096Kbps -8192Kbps, Substream: 64Kbps -512Kbps
- Browsers Supported: IE, Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection/Human detection/Vehicle detection
- Record Mode: Motion Record/Schedule Record (Default: Motion Record)
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximal User Access: 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Work with: Google Assistant
- Wireless Security: WPA-PSK/WPA2-PSK
- Operating temperature: -10°C~+55°C (14°F~131°F)
- Operating humidity: 10% ~ 90%
- Waterproof: IP66
- Size & Weight: 132mm x 281mm, 1.6kg
